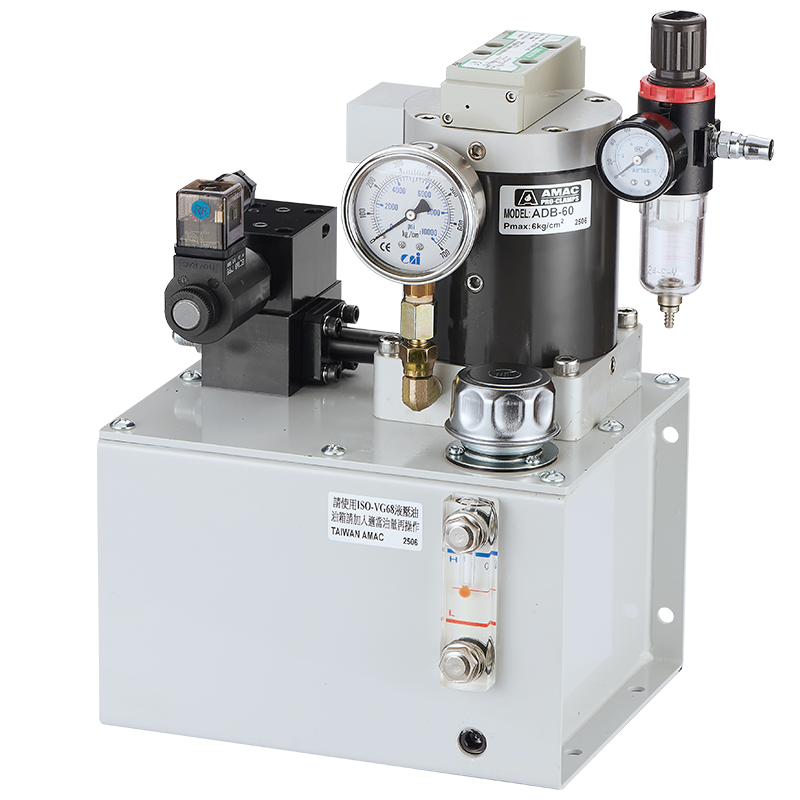

Air drive booster - Air Pump Sixty Times-Single Circuit
Product Introduction
• Pmax:6kg/cm²
• The structure and driving mode of the booster cylinder are the same as those of other multiples.
• Install
zero-leakage poppet-type solenoid directional valve, and add a pressure reducing valve to adjust and stabilize the oil pressure output pressure. The rated pressure Pmax: 350Kg/cm² ensures zero leakage under pressure.
zero-leakage poppet-type solenoid directional valve, and add a pressure reducing valve to adjust and stabilize the oil pressure output pressure. The rated pressure Pmax: 350Kg/cm² ensures zero leakage under pressure.• Multi-circuit solenoid directional valves can be installed to individually control the operation of the fixture hydraulic cylinder.
Poppet Valve Pressire Reducing Valve
Specification
| Fluid | Filtered air | |||||
| Max operation pressure | 6 Kg/cm² | |||||
| Boost pressure rate | 60 | |||||
| Air pressure supply6 Kg/cm² | 2 | |||||
| Hydraulic fluid expelledL/min | ||||||
| Oil tank capacity | 5 L | |||||
| Oil | ISO-VG68 | |||||
Order Code
| 1 | Series | ADB | |
| 2 | Boost pressure rate | 60 | |
| 3 | Control type | A | Manifold, magnet valve |
| B | Distributing tube seat P.T. port | ||
| 4 | Output method Poppet valve model |
PA | EP08W3C54N04 |
| PB | EP08W3C54N04 / EP08W3C53N04 | ||
| 5 | Coil type | AC110V，AC220V，DC24V | |
| 6 | Pressure reducing valve model |
PG11A30WL 35-315kg/cm² | |
Notice
• Use ISO-VG68 hydraulic oil. Be sure to fill proper amount of hydraulic oil into the oil tank before operation.
• Periodically inspect hydraulic oil quality to prevent affection on normal operation and parts life.
• In case air system can’t work, remove the air valve but do not break down. Use an air gan to clean the internal direction change ports.
• There is a thin type bronze silencer on the aluminum body of air cylinder. If it is blocked by suction of powder dust, it may impede the motion of the piston of air cylinder. When such problem occurs, remove it for cleaning or replacing.
• If air system works continuously, but hydraulic pressure can’t boost, it means oil seal is damaged causing internal leakage.
