Axial and side manifold type eliminate the use of piping for upgrading appearance elegance.
Hydraulic Thin-type Cylinder Hydraulic Thin-type Cylinder
Product Introduction
• Bore : ø20~ø80 mm    • Pmax : 140 Kg/cm²

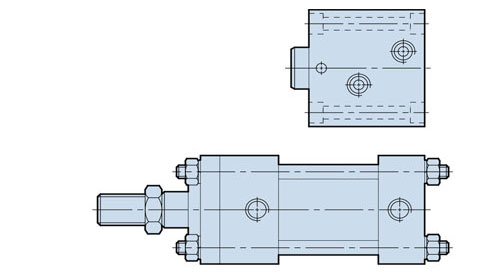

• Compact construction for space saving. Ideal for application in a restricted space.
• Standardized specifications. Direct installation without need of any further accessories for saving cost.
• The cylinder barrel is manufactured from structural carbon steel. Internal wall is specially treated, featuring maximum smoothness and long service life.
• Axial and side manifold type eliminate the use of piping for upgrading appearance elegance.
Taiwan AMAC Clamp Ind. Co., Ltd.
Hydraulic Thin-type Cylinder Air Swing Clamp Cylinder Air drive booster pump Hydraulic Swing Clamp Hydraulic Supporting Cylinder Hydraulic Sequence Valve PTA Movable Steel Ball Positioning Screw
AMAC Pneumatic and Hydraulic Clamp Components Automated Machine Accessories Clamps

Hydraulic Thin-type Cylinder Product type

Hydraulic Thin-type Cylinder

Product Introduction

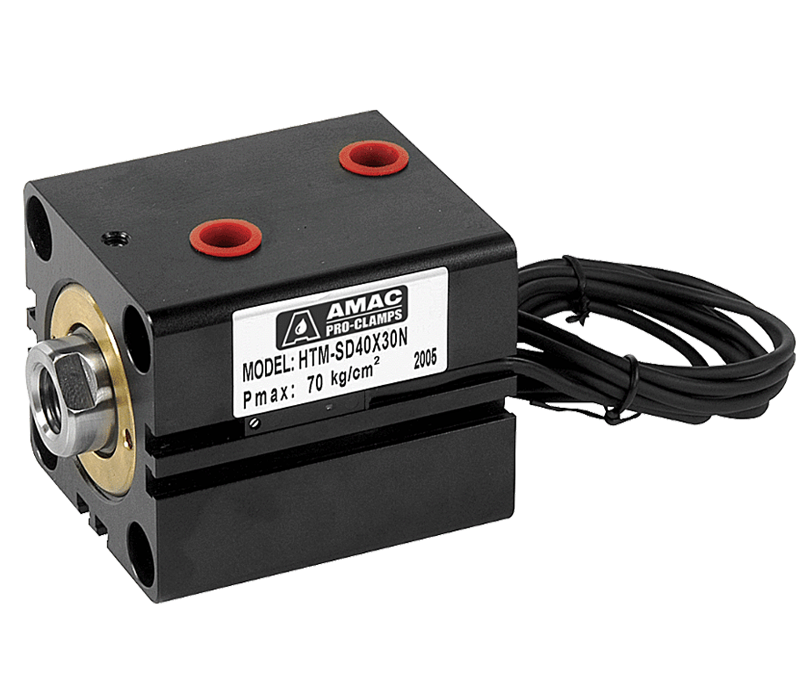

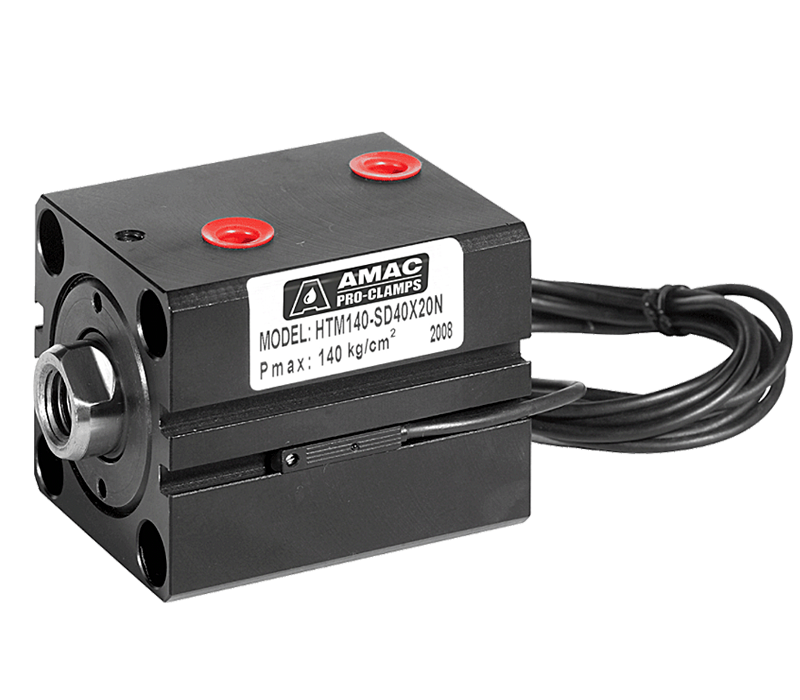

 HTM70 Magnetic-Type Hydraulic Cylinder

HTM70 Magnetic-Type Hydraulic cylinder
ø32-ø80 / Pmax:70Kg/cm²

 HTM140 Magnetic-type hydraulic cylinder

HTM140 Magnetic-type hydraulic cylinder
ø32-ø80 / Pmax:140Kg/cm²

 HTM140 Magnetic-Type Hydraulic Cylinder

Custom rod end type is available. Provide your desired sizes when ordering. ø20-ø80

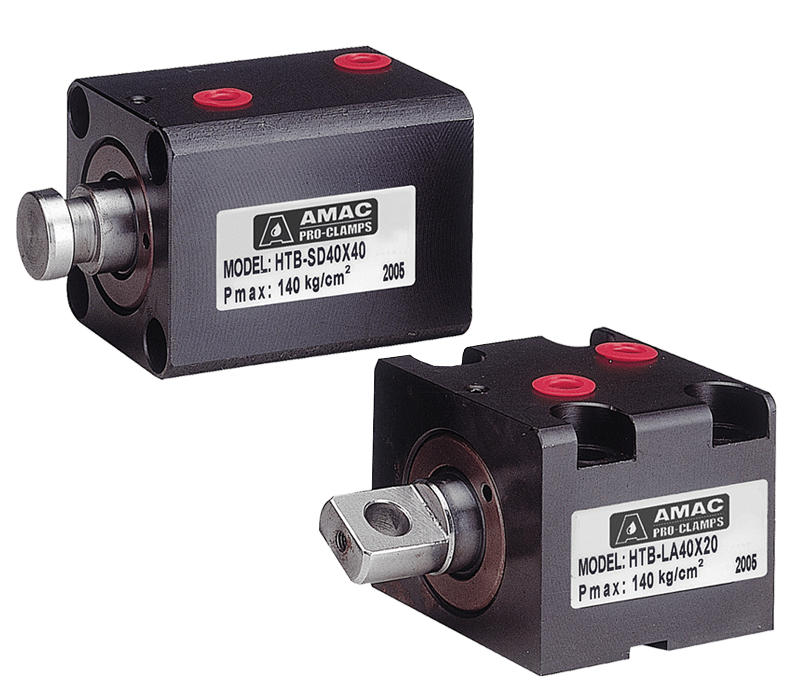

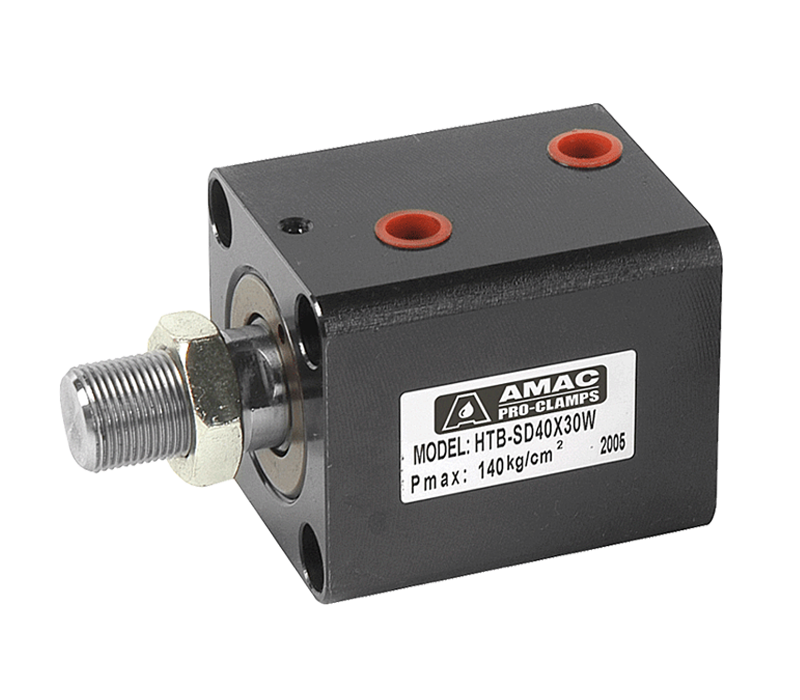

 SD Axial Mounting Type(Single End Rod)

SD Axial mounting type (Single End Rod) ø20-ø80

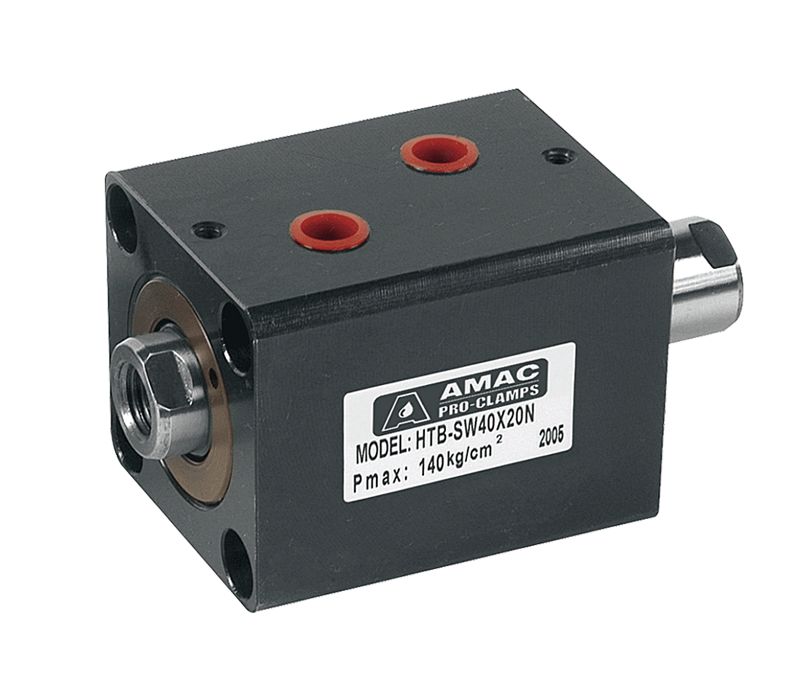

 SW Axial Mounting Type(Double End Rod)

SW Axial Mounting Type (Double End Rod) ø20-ø80

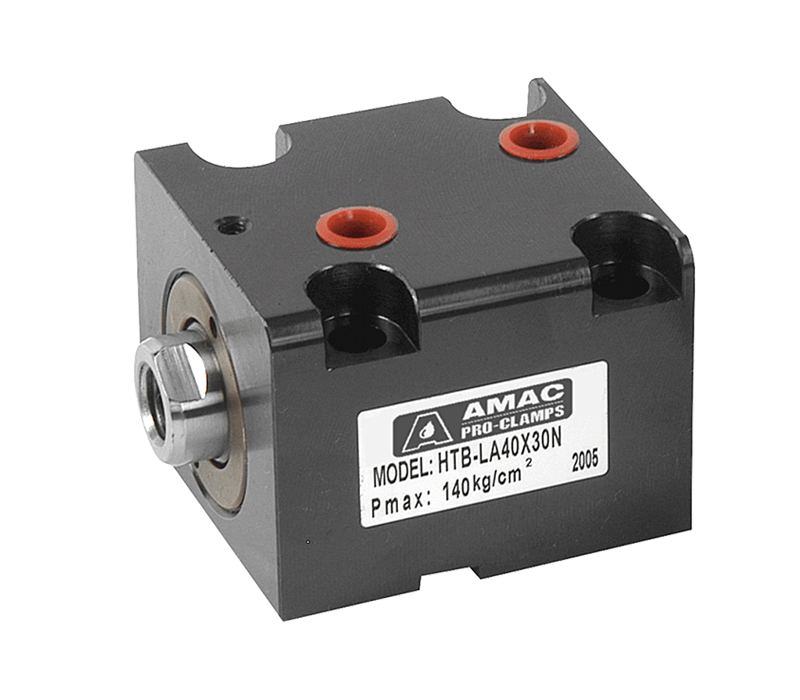

 LA Side Mounting Type(Single End Rod)

LA Side Mounting Type (Single End Rod) ø20-ø63

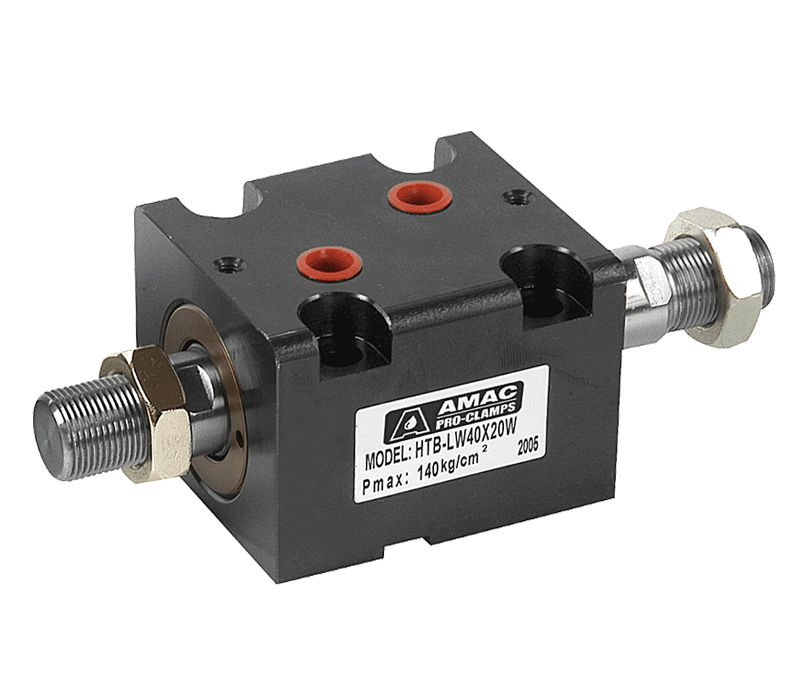

 LW Side Mounting Type(Double End Rod)

LW Side Mounting Type (Double End Rod) ø20-ø63

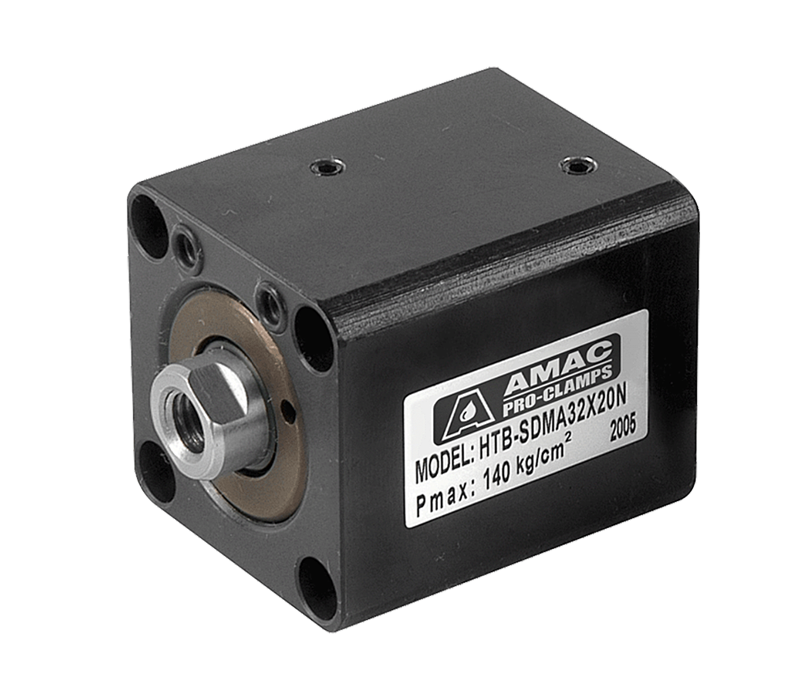

 SDMA Axial Front Manifold Type

SDMA Axial Front Manifold Type (ø20-ø80)

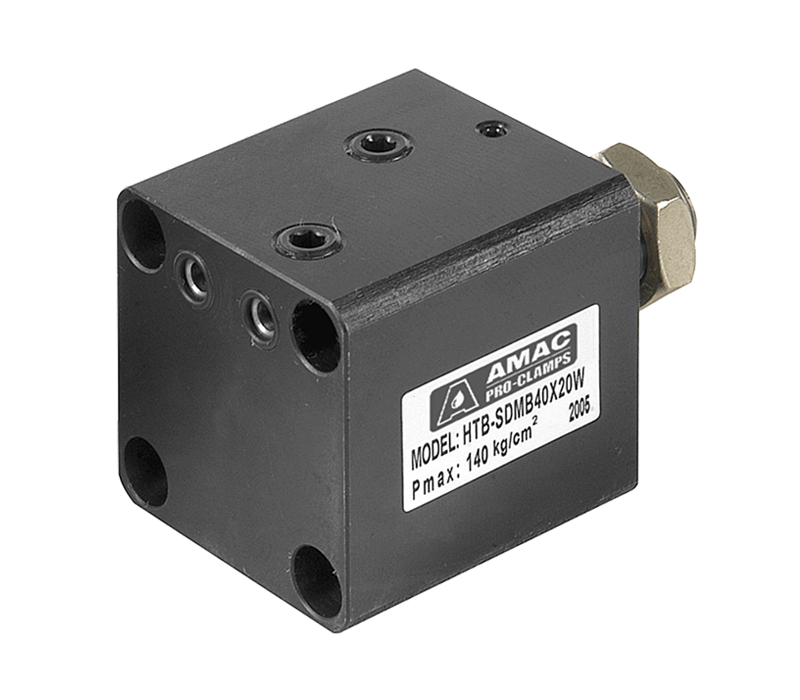

 SDMB Axial Back Manifold Type

SDMB Axial Back Manifold Type (ø20-ø80)

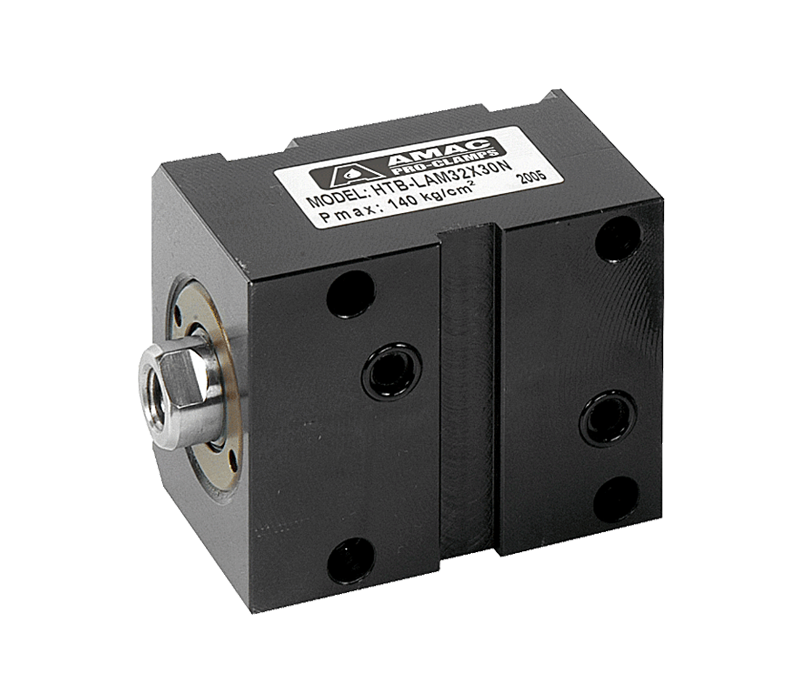

 LAM Side Manifold Type(Single End Rod)

LAM Side Manifold Type (Single End Rod) ø20-ø63

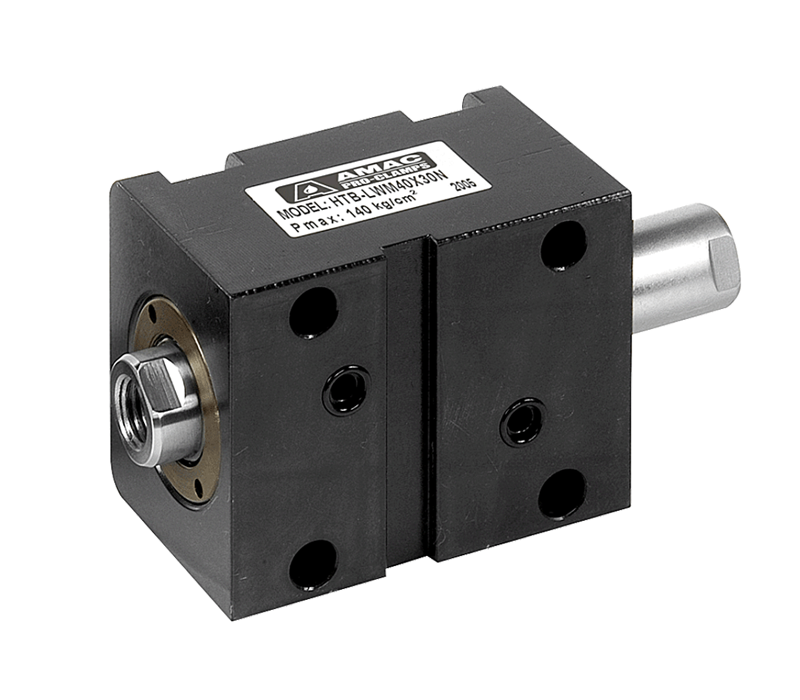

 LWM Side Manifold Type(Double End Rod)

LWM Side Manifold Type (Double End Rod) ø20-ø63
Specification
Mounting type SD: Single end rod type
SW: Double end rod type
LA: Single end rod type
LW: Double end rod type
Operation pressure range 5-140 Kg/cm²
Operation speed range 8-100 mm/sec
Operation temperature range -10˚C ~ +60˚C
Fluid Filtered air
Acting type Double acting
Material of cylinder barrel Carbon steel
