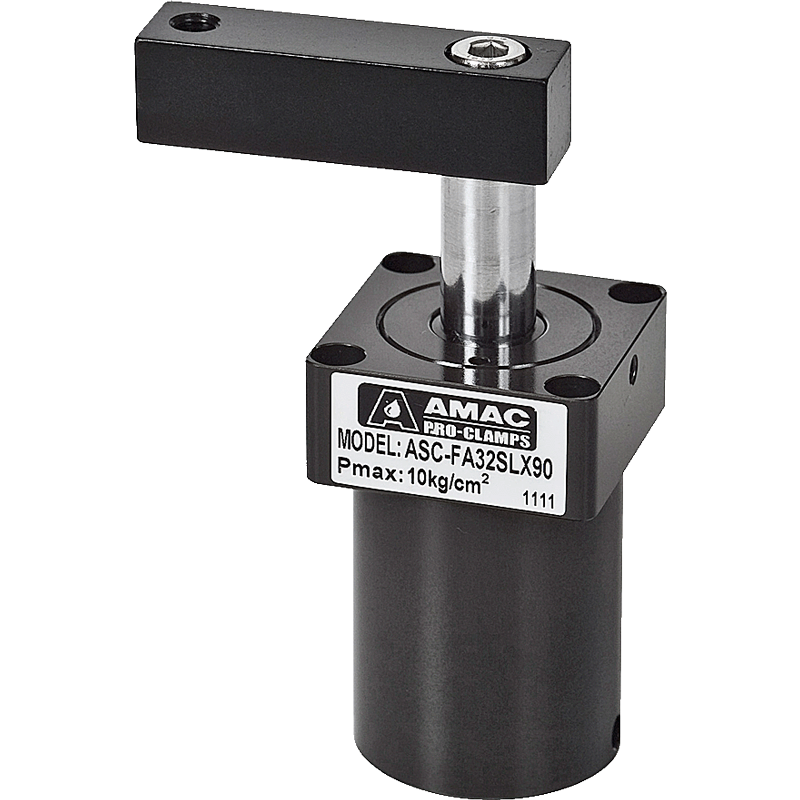

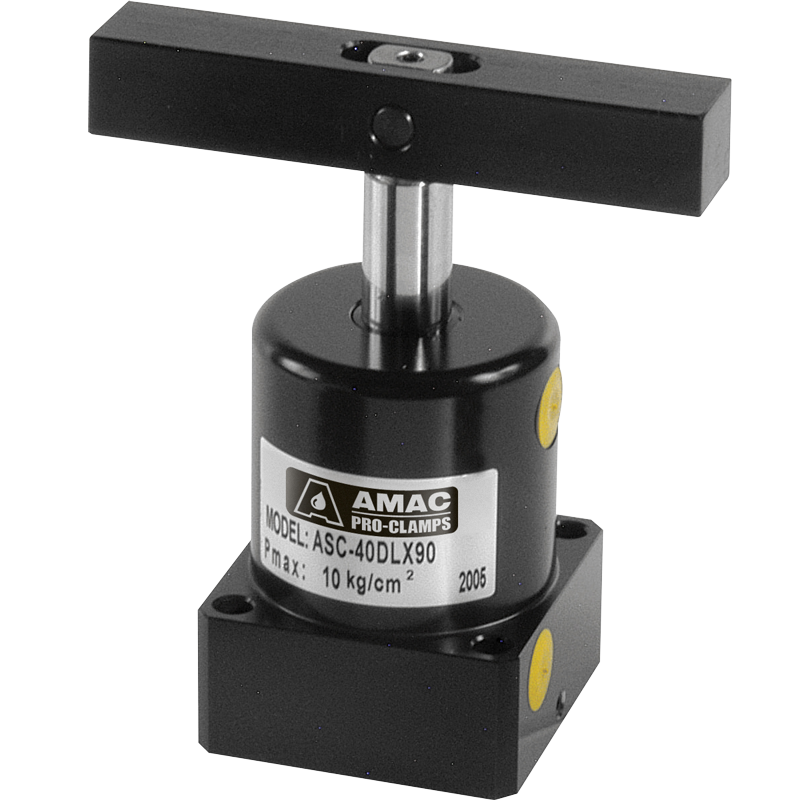

Air Swing Clamp Cylinder Air Swing Clamp Cylinder
Product Introduction
• Bore : ø25~ø63 mm    • Pmax : 10 Kg/cm²
• The product is ideal for mass production on a special purpose machine and jig on machining center. It will greatly upgrade production efficiency.
• When the air cylinder actuate, and the piston moves downward, the clamping arm will swing to a rated angle! Then it lowers until the workpiece is clamped securely.
• To avoid too fast motion a flow control valve is suggested to connect to the air inlet ports (A, B) on the swing clamp cylinder. Do not clamp workpiece while the clamp is swinging to avoid damaging on the cylinder barrel and internal parts.
• When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the ariginal length.
• The cylinder body is manufactured from aluminum allog. Surface is hard membrane treated for maximum smoothness on inside surface and long service life.
Specification
Bore of cylindermm ø25 ø32 ø40 ø50 ø63
Piston rod diametermm ø14 ø16 ø16 ø20 ø20
Swing strokemm 8 9 9 11 11
Clamping stroke (std/extension)mm 14 17 / 32 17 / 32 19 / 36 19 / 36
Pressure area(pull/push)mm 3.37 / 4.91 6.03 / 8.04 10.56 / 12.57 16.47 / 19.63 28.03 / 31.17
Theoretical clamping force6 Kg/cm² 20 36 63 99 168
Fluid Filtered air
Max operation pressure 10 Kg/cm²
Operation pressure range 1-7Kg/cm²

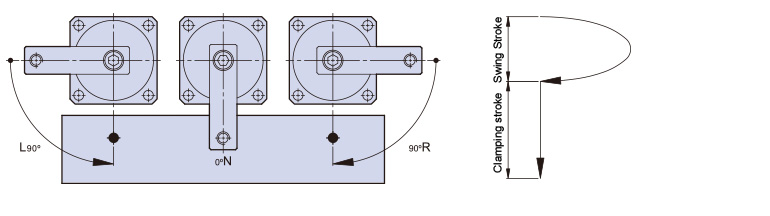

Rotating direction R:Turn right/ L:Turn left/ N: 0˚ No swing

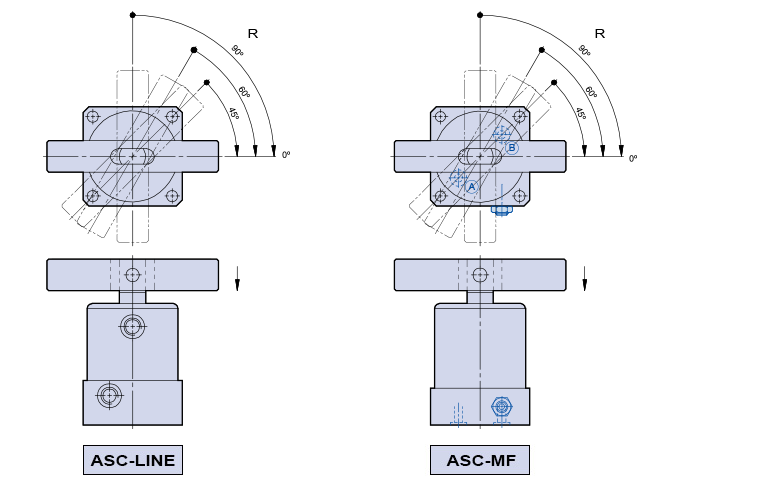

Rotating angle Standard angle 90˚, Optional angle 45˚, 60˚
Acting type Double acting

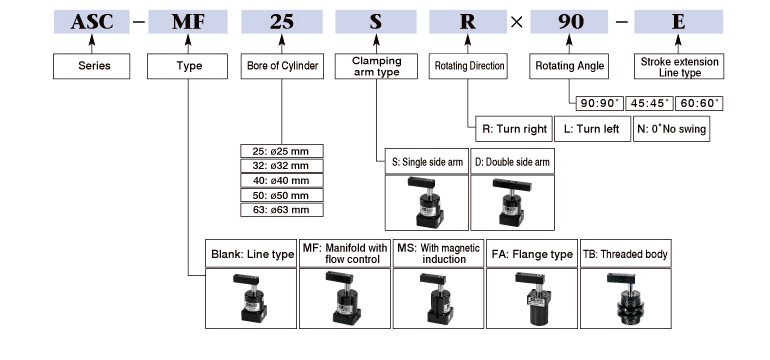

Order Code

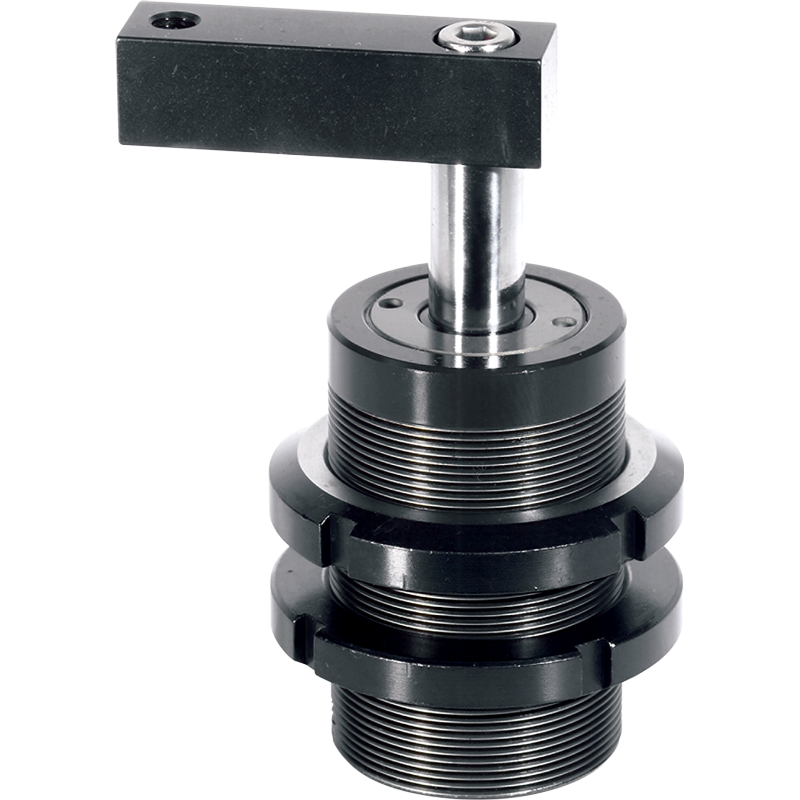

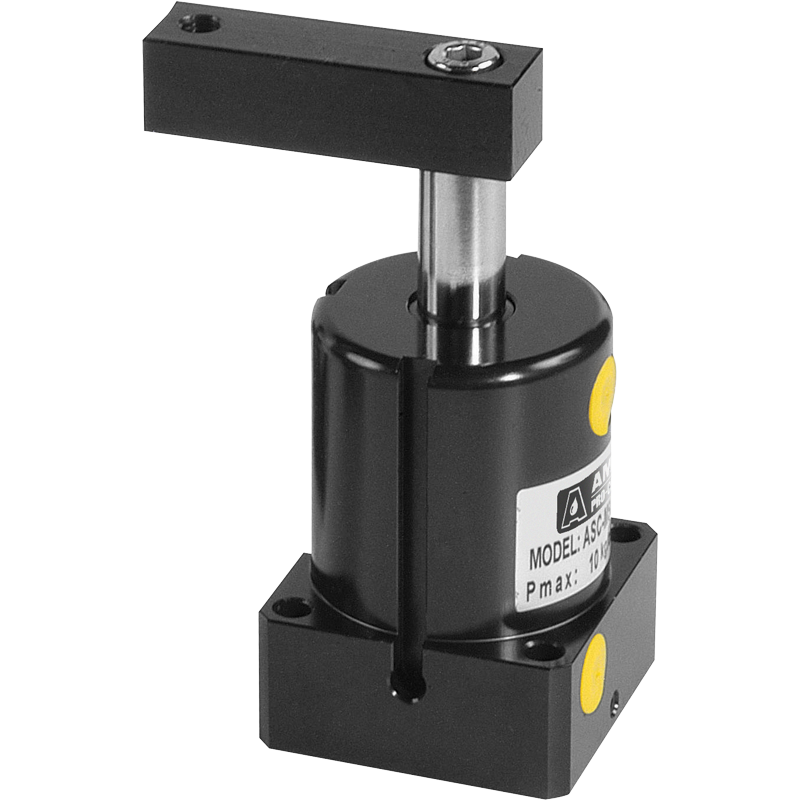

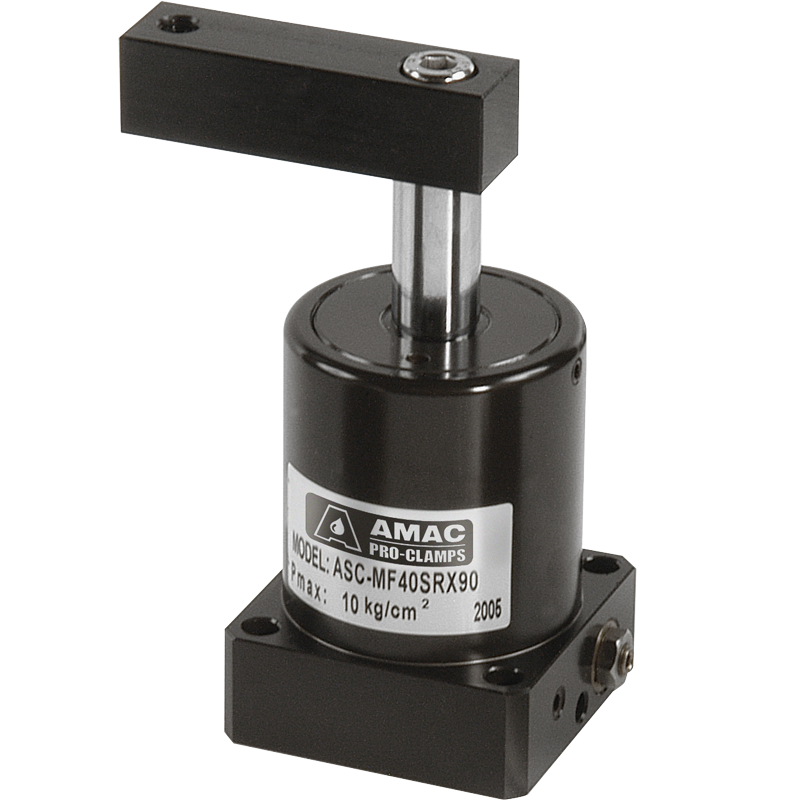

Air Swing Clamp Cylinder Order Code
